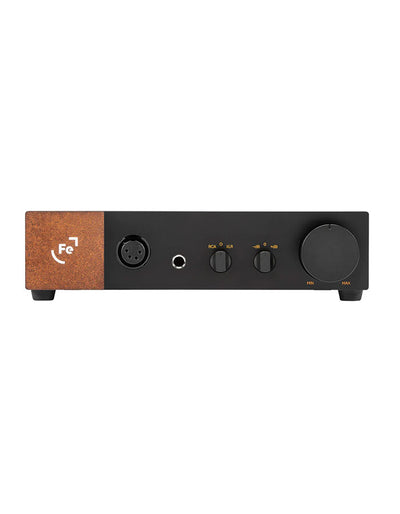

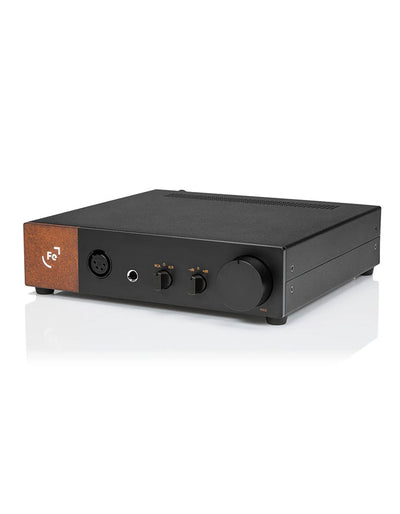

Ferrum OOR - Headphone Amplifier
1 In stock
Unique output cable design: two wires delivering the power and two wires providing the feedback to ensure flat voltage at every moment. The technique, Ferrum Power Link (FPL), eliminates the harmful effects of the cable's resistance effectively improving transient response. The current delivery speed at the powered device's input is significantly improved.
OOR will redefine the category of headphone amplifiers. OOR will drive any headphones effortlessly to the max of their potential, while preserving the essence of the music it amplifies. Ultra low distortion, zero fatigue, huge dynamics and unrivaled detail result in ultimate enjoyment. OOR actually makes something that is very difficult to accomplish, seem like the most natural thing on earth.
Truly Balanced: The signal path stays truly balanced using the XLR inputs and becomes truly balanced using the RCA inputs.
Ease of Use: only three knobs on the front panel to control the most important settings.

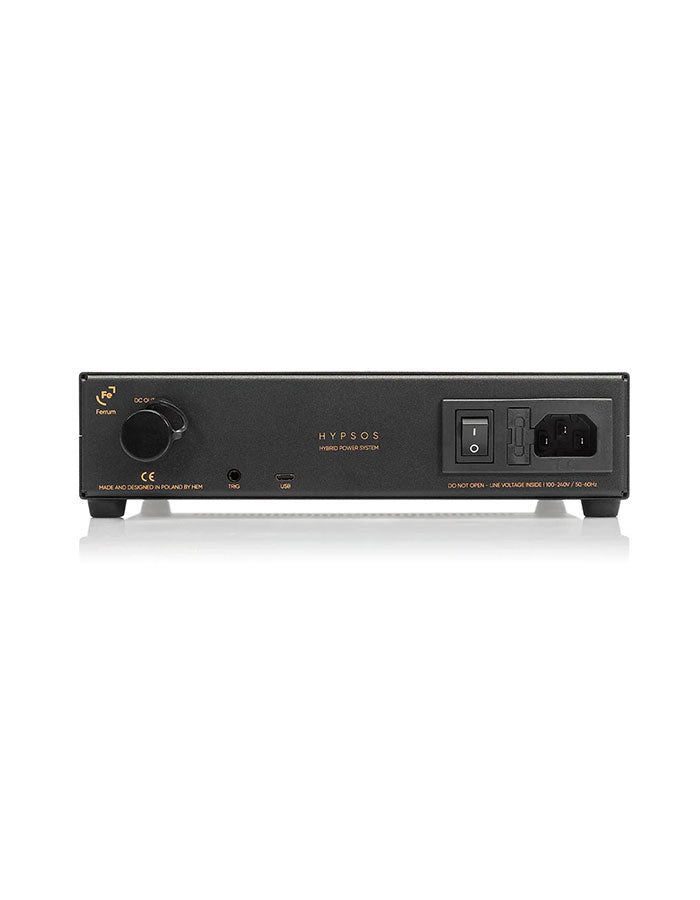

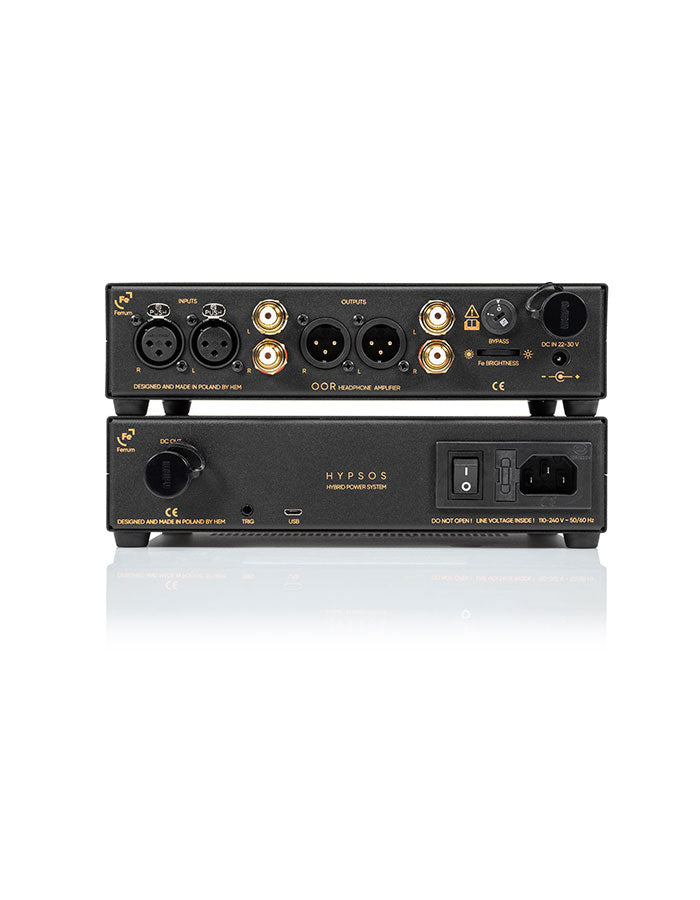

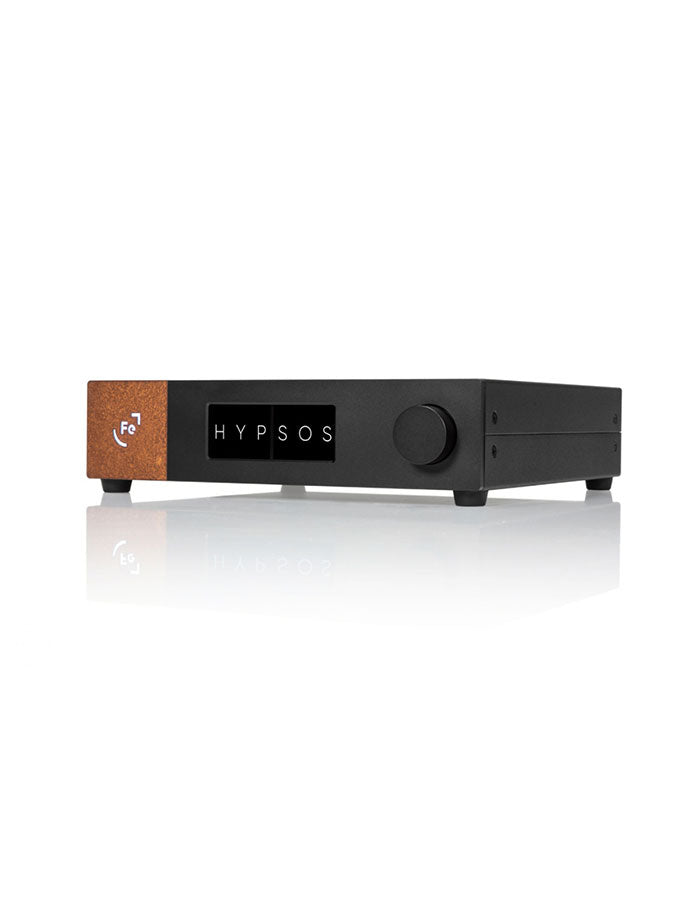

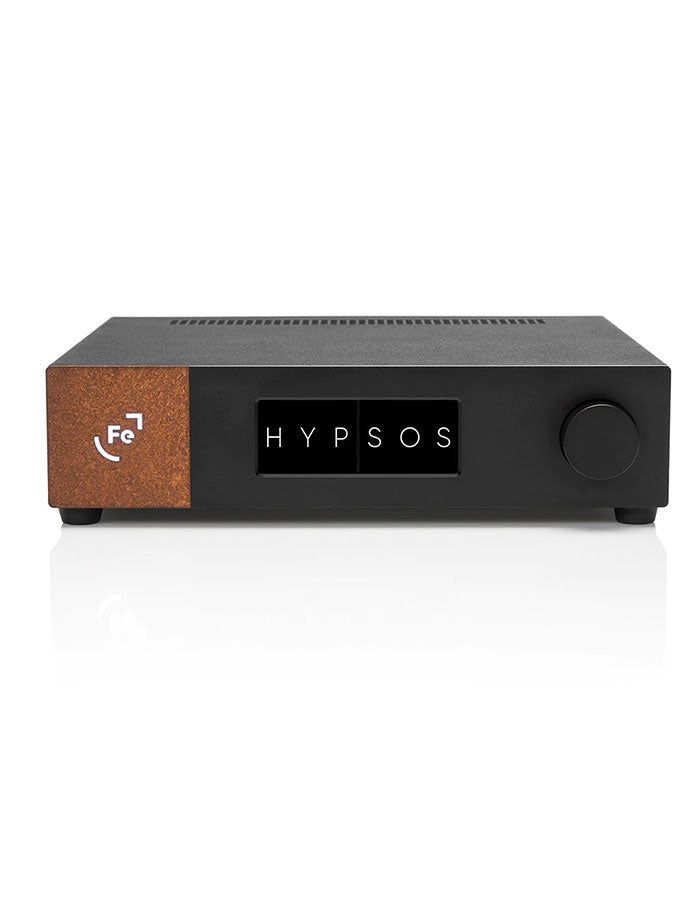

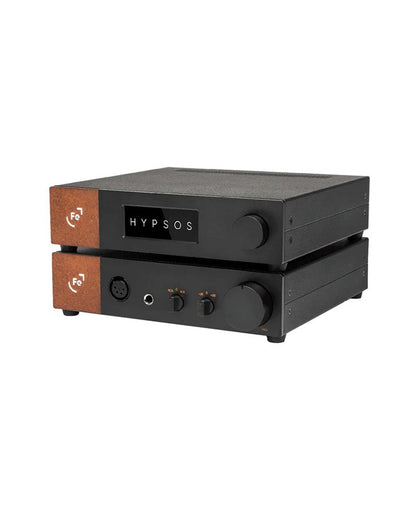

Ferrum Power Link: OOR performs very, very good right out of the box. But OOR is made to excel above and beyond when used together with HYPSOS. We use what we dubbed our Ferrum Power Link (FPL in short) to connect the two. HYPSOS then will perform to its maximum, unleashing unheard musicality from the combination with OOR.
Superior Control: perfected steering of output transistors protect them and never let them turn off, therefore reducing distortion to inaudible levels and keeping them in a state where they can instantly unleash all their power, crucial for high dynamics, superlative control and authority in sound.
Enhanced Transparency: The whole design is focussed on a balanced and very transparent sound signature, making listening fatigue something of the past.
Discrete Design: The discrete power amp technology is developed in-house to achieve the best possible analog quality.
Gain (dB):balanced -4 dB, + 6dB, +16 dB / single ended -10 dB, 0 dB, 10 dB
Operation: Fully balanced, proprietary discrete power amp technology

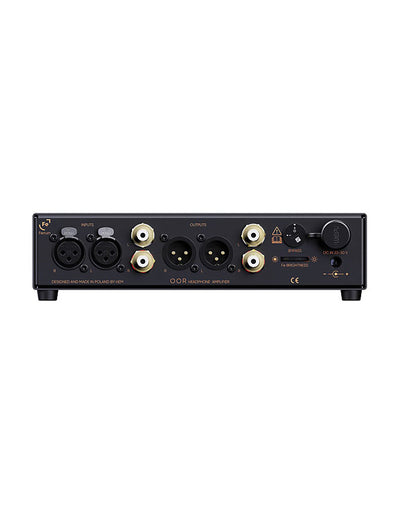

Inputs: XLR, RCA, 2.5 mm DC connector centre positive, proprietary 4-pin DC connector
Outputs: Balanced 4-pin XLR, 6.35 mm jack
Frequency Response: 20 Hz – 100 kHz 0.1 dB
Output Power Single Ended: 400 mW into 300 Ω, 2 W into 60 Ω
Output Power Balanced: 1.600 mW into 300 Ω, 8 W into 60 Ω
THD on balanced output: 0.00011% / -119 dB, 1 mW into 50 Ω; 0.00028% / -111 dB, 100 mW into 50 Ω
THD on unbalanced output: 0.00008% / -122 dB, 1 mW into 50 Ω; 0.00028% / -111 dB, 100 mW into 50 Ω
Dynamic range: 130 dB (A-weighted)
Input Impedance: 94 kΩ
Output Impedance Single Ended: 22 Ω on pre-amp
Output Impedance Balanced: 44 Ω on pre-amp
Output headphones Impedance: < 0.3 Ω
Power Consumption: Idle <15 W
Power Adapter: 100/240 V AC to 22-30 V DC
Dimension (W x D x H) (In/cm): 8.6 x 8.1 x 2.0 inch / 21.7 x 20.6 x 5 cm
Weight (kg/lbs): 1.8 kg / 3.97 LBS
Price: 1.995 EUR/USD
